Quick Overview

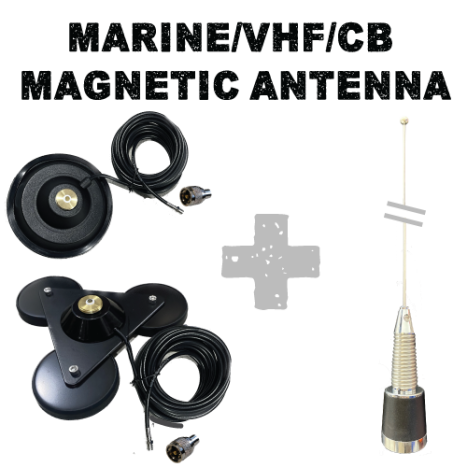

Marine/VHF/CB Magnetic Truck Mount Long Range Antenna
You can select the NMO FME magnetic truck mount that works best for your needs. These Magnetic NMO mounts include the whip uncut so they can be tuned accordingly. FME to VHF adapters are included. An FME to SMA adapter may be selected to use Garmin devices. The new triple magnet mount offers the most stability for the most rugged trails.
Choose the best truck magnet mount for you! Now with more options than ever, you can choose the best truck magnet mount for your needs. First, choose which size NMO magnet mount you want. There is a 6" magnet truck mount and the new triple magnet mount intended for the most rugged and overgrown trails. Next, select the antenna (VHF/Marine or CB Radio). Double U will cut the antenna to the desired frequency. Lastly, you may select a ground plane kit to pair with your new magnet truck mount. The FME to SMA adapter is compatible with Garmin devices including: Garmin Alpha 300i, Alpha 200i, Garmin Alpha 100, Garmin Astro 430, and Garmin Astro 320.
Quick Overview
This extra long 49" whip extends your tracking range even further. This antenna magnet is also larger and more powerful.
To use with an SMA connector, the FME to SMA adapter is required.
For VHF/CB Radio, an FME to PL-259 adapter is required.
If you are looking for an antenna that can be used for both Marine and the Alpha or Astro, please select the PL-259 connector with the adapter which will allow you to connect it to the Astro.
The spring allows for additional flexibility to minimize the chance of your antenna whip snapping
This Product Uses a 5/8 Antenna
6" Magnet - 18 Ft of cable
Triple Magnet - 18 Ft of cable
Tuning this antenna: The marine antennas are sent at their uncut length of 49" and are tuned at 144 MHz. The CB antennas are also sent at their uncut length of 49" and are tuned at 26.5 MHz. If customers wish to further tune their antenna, they should cut them according to an SWR analyzer.
- 5/8 Wave Antenna
- Marine: 144-174MHz Frequency Range
- CB: 26.5-30 MHz Frequency Range
- 3dBd Gain (approximately 5.15 dBi)
